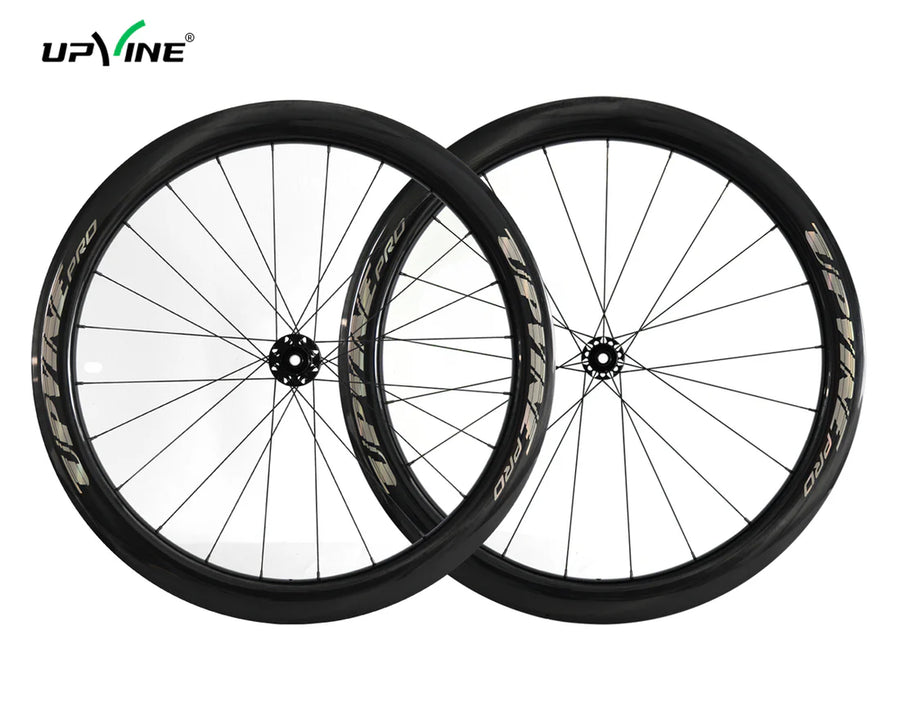

UPVINE PRO Disc Carbon Wheelset

Fast. Balanced. Ready for Anything.

The UPVINE PRO Disc has been engineered as the ultimate all-round performance wheelset, combining aerodynamic efficiency, exceptional stiffness and long-term reliability into one beautifully balanced package.

Rather than focusing on a single performance attribute, the PRO has been developed to excel everywhere. Whether you're racing, climbing, sprinting or covering long training miles, every component has been carefully engineered to maximise power transfer while delivering predictable handling and confidence-inspiring stability.

Constructed using premium Toray T700 & T800 carbon fibre, UPVINE's own precision-engineered hub system and custom ultra-light stainless steel spokes with titanium alloy nipples, the PRO delivers race-level performance without compromise.

Every UPVINE PRO wheelset stocked by Off The Front is officially listed on the UCI Approved Wheels List, making it eligible for UCI-sanctioned competition.

Key Features

• Officially listed on the UCI Approved Wheels List
• Available in 50mm and 60mm rim depths
• Premium Toray T700 & T800 carbon fibre rims
• Lightweight from 1360g
• Hooked clincher / tubeless-ready design
• UPVINE self-developed hubs
• ConicalSync™ 60T Tangent Engagement System
• Rapid 6° engagement angle
• DualBalance™ Geometry System
• 2:1 rear spoke lacing
• Custom ultra-light stainless steel spokes
• Titanium alloy nipples
• Shimano HG or SRAM XDR freehub options
• Lifetime manufacturer's warranty
• Lifetime repair programme
• 70% crash replacement programme

Engineered for Every Ride

The PRO has been developed for riders who want one wheelset capable of doing everything exceptionally well.

From hard training rides and fast club runs to road races and mountain sportives, the PRO combines lightweight construction with aerodynamic efficiency and outstanding stiffness to deliver immediate acceleration, confident handling and dependable reliability.

It's a wheelset built to perform every time you ride.

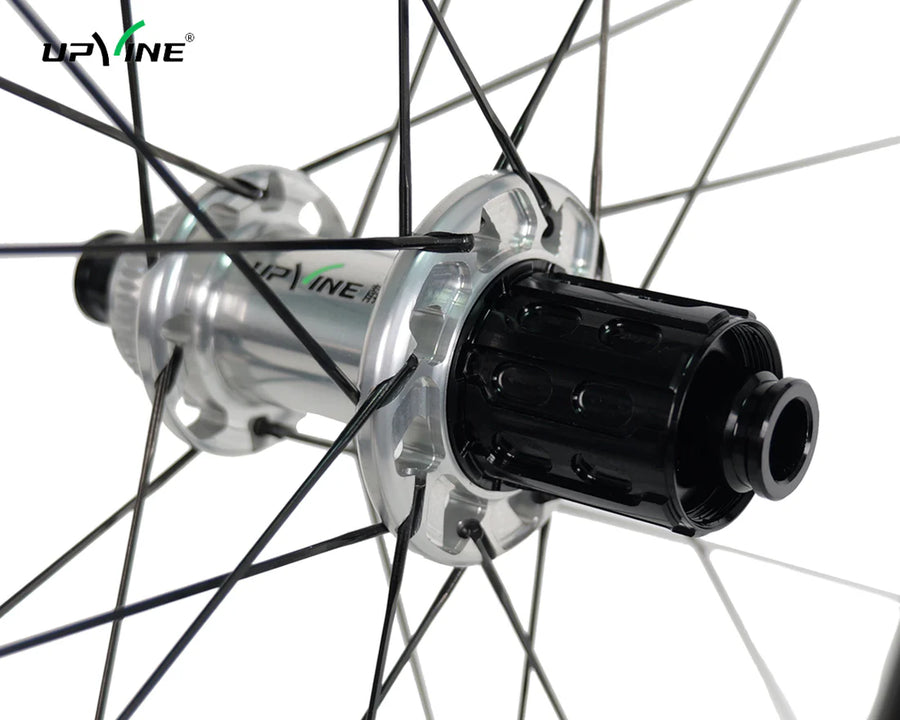

Precision Hub Engineering

At the heart of every PRO wheelset is UPVINE's own lightweight hub, designed, engineered and manufactured entirely in-house.

Manufactured from an ultra-high-strength aluminium alloy developed from the same material family used in advanced aerospace applications, the hub delivers exceptional strength while maintaining impressively low weight.

Key structural performance includes:

• Spoke hole pull-out strength: 4900N
• Freehub torque capacity: 180–200Nm
• Successfully completed 60,000-cycle durability testing
• High-precision UPVINE bearings
• Long-life high-performance grease

The result is exceptional durability alongside smooth, efficient power transfer.

ConicalSync™ Tangent Engagement

The PRO features UPVINE's ConicalSync™ 60T Tangent Engagement System, providing rapid 6° engagement for immediate response under power.

Unlike traditional radial ratchet systems, the unique tangent tooth profile increases engagement surface area by approximately 10%, creating greater stability, improved torque capacity and enhanced long-term reliability.

Every pedal stroke is transferred quickly and efficiently, whether accelerating from slow corners or sprinting for the line.

DualBalance™ Geometry System

One of the defining features of the PRO is UPVINE's DualBalance™ Geometry System.

By combining a 2:1 rear spoke lacing pattern with carefully engineered hub flange geometry, the system optimises spoke bracing angles and balances spoke tension across both sides of the wheel.

The result is exceptional lateral stiffness, improved stability under load and a wheel that remains true and responsive throughout years of hard riding.

Built Around Durability

The PRO uses UPVINE's own custom-engineered ultra-light stainless steel spokes, weighing just 3.7g each.

Despite their lightweight construction, each spoke achieves a breaking strength of 3500N—approximately 124% stronger than many mainstream stainless steel spokes.

To complement the spoke system, every PRO wheelset is fitted with titanium alloy nipples, providing exceptional corrosion resistance and eliminating the risk of corrosion-related failures caused by sweat, road salt and harsh weather conditions.

Together, they create a wheelset built for long-term reliability without sacrificing performance.

Technical Specifications

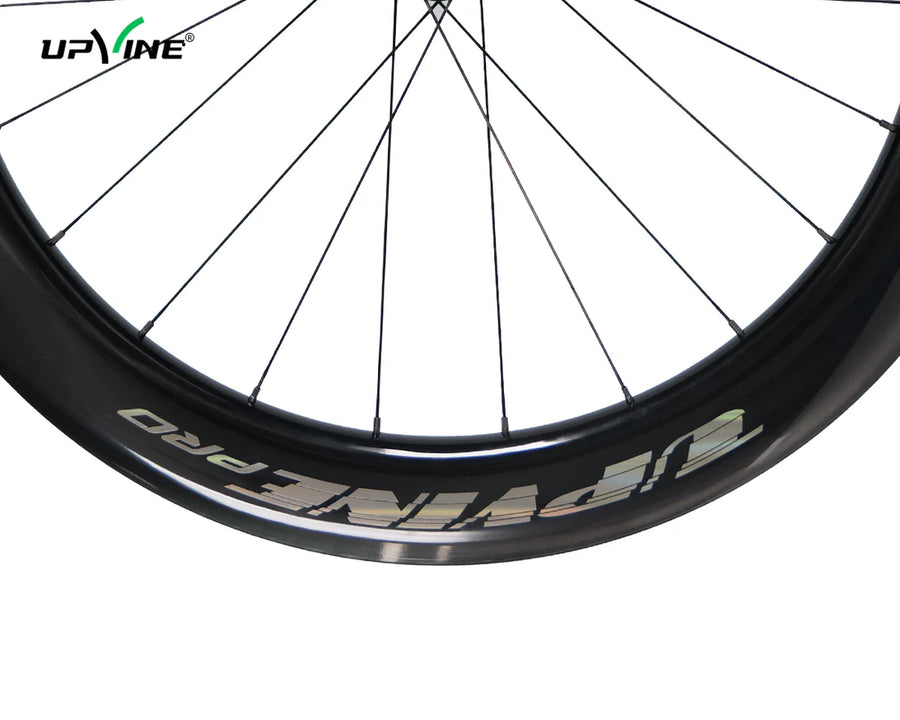

Rim

• Toray T700 & T800 Premium Carbon Fibre
• Hooked Clincher / Tubeless Ready

PRO 50

• Rim Depth: 50mm
• Internal Width: 23mm
• External Width: 35.1mm
• Weight: 1360g ±5%

PRO 60

• Rim Depth: 60mm
• Internal Width: 23mm
• External Width: 35.1mm
• Weight: 1425g ±5%

Spokes

• Custom Ultra-Light Stainless Steel Spokes
• Titanium Alloy Nipples
• Front: 21
• Rear: 24
• 2:1 Rear Lacing Pattern

Hub

• UPVINE Self-Developed Hub
• Aerospace-Grade Aluminium Construction
• ConicalSync™ 60T Tangent Engagement
• 6° Engagement Angle
• High-Precision Bearings
• Shimano HG or SRAM XDR Freehub

Lifetime Support

Every UPVINE wheelset is backed by comprehensive after-sales support, including:

• Lifetime manufacturer's warranty
• Two-Year Care Programme
• Lifetime repair service
• 70% crash replacement programme

Because premium wheels should deliver long-term performance as well as race-day speed.

Why We Stock It

The PRO perfectly represents what UPVINE does so well: combining intelligent engineering with real-world performance.

Rather than chasing the lightest possible weight or the deepest possible rim, the PRO focuses on creating the perfect balance of aerodynamics, stiffness, responsiveness and durability. From its precision-built hubs and ConicalSync™ engagement system to its lightweight steel spokes and titanium alloy nipples, every component has been selected to work together as a complete system.

If you're looking for one wheelset that can comfortably handle racing, fast training rides and everyday performance, the UPVINE PRO is an outstanding choice. It delivers the speed, reliability and ride quality you'd expect from a premium carbon wheelset, with engineering that's built to perform for years to come.
