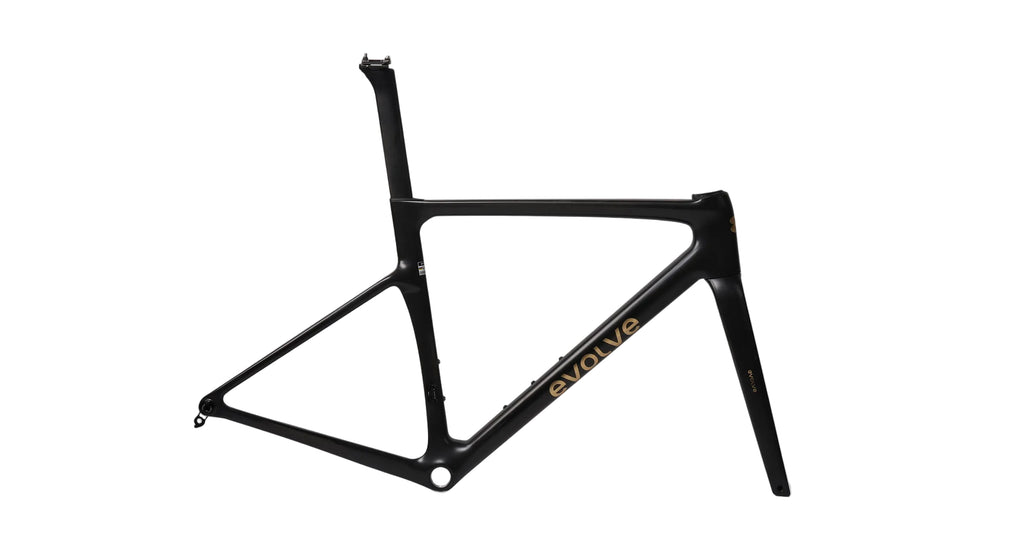

Evolve Cima - Speed Series - Matte Carbon / Gold

Evolve Cima - Speed Series - Matte Carbon / Gold

Extra Small - XS / -5mm Forward
£1,994.99
£1,994.99
Skip to product information
Evolve Cima - Speed Series - Matte Carbon / Gold
  • Evolve Cima - Speed Series - Matte Carbon / Gold
  • Evolve Cima - Speed Series - Matte Carbon / Gold
  • Evolve Cima - Speed Series - Matte Carbon / Gold
  • Evolve Cima - Speed Series - Matte Carbon / Gold
  • Evolve Cima - Speed Series - Matte Carbon / Gold
  • Evolve Cima - Speed Series - Matte Carbon / Gold
  • Evolve Cima - Speed Series - Matte Carbon / Gold
  • Evolve Cima - Speed Series - Matte Carbon / Gold
  • Evolve Cima - Speed Series - Matte Carbon / Gold
Evolve Cima - Speed Series - Matte Carbon / Gold

Evolve Cima - Speed Series - Matte Carbon / Gold

£1,994.99
£1,994.99
Size
Seatpost Offset
Free UK Delivery On orders over £30
Official UK Retailer 100% Genuine Products
Full Warranty Backed by the Manufacturer

EVOLVE CIMA.

Engineered to climb. Designed to disappear into the wind.

The EVOLVE CIMA brings together exceptionally low weight, aerodynamic refinement and uncompromising responsiveness in a frameset engineered for the demands of modern road racing.

Constructed using advanced Toray carbon fibres, every element has been carefully considered to deliver a precise balance of climbing efficiency, aerodynamic performance and confident handling.

A frameset where every gram, every contour and every detail has a purpose.

650 g

ENGINEERED FOR THE CLIMB

At just 650 g for an unpainted size M frame, the EVOLVE CIMA represents a remarkable balance of low weight, stiffness and aerodynamic performance.

Engineered for riders who demand exceptional climbing efficiency without compromising handling or responsiveness.

T1100 / T800 / M40

CARBON WITHOUT COMPROMISE

The EVOLVE CIMA is constructed using a sophisticated blend of Toray T1100, T800 and M40 carbon fibres, carefully selected to balance exceptional stiffness, low weight and structural strength.

An advanced resin formulation delivers a claimed 12% increase in rigidity compared with conventional resin systems, allowing the CIMA to achieve remarkable performance at an exceptionally low frame weight.

PRECISION IN EVERY CONTOUR

AERODYNAMICS. ENGINEERED. TESTED.

The EVOLVE CIMA has been developed with aerodynamic efficiency at its core, combining carefully sculpted tube profiles with an integrated cockpit designed to reduce aerodynamic drag.

Refined through wind tunnel testing at the Silverstone Sports Engineering Hub, every contour has been considered to balance aerodynamic performance, low weight and responsive handling.

Engineered to perform when every watt matters.

FORM FOLLOWS PERFORMANCE

ENGINEERED TO WORK AS ONE.

The EVOLVE CIMA is available in six frame sizes, from XS to XL, with carefully developed geometry designed to deliver responsive handling, stability and an efficient riding position.

Its aerodynamic carbon seatpost complements the frameset's sculpted profiles and is available in three offset configurations — -5 mm, +10 mm and +25 mm — allowing riders to fine-tune their saddle position.

CeramicSpeed SLT headset bearings are included as standard, delivering exceptional durability, corrosion resistance and low-maintenance performance.

A BSA threaded bottom bracket and SRAM UDH compatibility complete a frameset that combines cutting-edge performance with practical, long-term serviceability.

GEOMETRY & SIZING.

The EVOLVE CIMA's geometry has been carefully developed to balance aerodynamic efficiency, responsive handling and all-day riding performance.

Explore the detailed geometry chart below to compare frame dimensions, stack, reach and other key measurements, helping you select the ideal CIMA for your riding position and preferences.

EVOLVE CIMA geometry

EVOLVE CIMA geometry

Frame geometry

MeasurementXSSMMLLXL
Stack 506528544562580608
Reach 371 378 384 390 397 406
Top tube length 507 519 540 551 569 586
Head tube length 103 122 138 153 173 203
Seat tube length 443 465 481 499 517 540
Head tube angle 71.1 72.2 73 73.8 73.8 73.8
Seat tube angle 75 75 74 74 73.5 73.5
Wheelbase 969 973 978 978 991 1008
Fork offset 44 44 44 40.2 40.2 40.2

Measurements in millimetres unless indicated otherwise.

THE GOOD STUFF

Explore the official EVOLVE CIMA weight specifications across all six frame sizes and available paint finishes.

Select your preferred frame size and colour to view its corresponding frame weight, or explore the detailed tables below for fork, seatpost, cockpit and individual component weights.

All figures are supplied by EVOLVE and represent manufacturer-stated weights. Actual weights may vary due to paint finish, manufacturing tolerances and individual component configurations.

Frame weight

g
Frame sizeNirvana / Matte Carbon GoldMist / WildernessTaiwan EditionEmergeRewindStreamsAdriftBillow / Team MCKTropical YellowNavy White
XS685690700705710715720725730740
S688693703708713718723728733743
M696701711716721726731736741751
ML711716726731736741746751756766
L744749759764769774779784789799
XL765770780785790795800805810820

Fork weight

Nirvana / Matte Carbon Gold

366 g

Mist, Wilderness, Billow, Navy White, Team MCK, Taiwan Edition

370 g

Streams, Emerge, Adrift, Rewind, Tropical Yellow

375 g

Seatpost weight

ConfigurationWeight
+10mm offset / 310mm length93 g
+10mm offset / 380mm length108 g
-5mm offset / 310mm length100 g
-5mm offset / 380mm length120 g
+25mm offset / 310mm length96 g
+25mm offset / 380mm length112 g

Seatpost components weigh 45g.

Components

Total frameset component weight180.2 g
View component breakdown
Frameset components.

Seatpost Clamp — 17.5g
Di2 Battery Mount — 5.2g
Front Derailleur Hanger — 6.1g
Rear Derailleur Hanger (Standard) — 26.8g
Front & Rear Axles — 48.9g
Headset Bearings — 41.5g
Headset Compression Ring — 5.1g
Headset Cover — 10.3g
Expansion Hanging Core — 15.0g
Water Bottle Cage Mounting Bolts — 3.8g

Manufacturer's stated total
180.2g

One-piece handlebar components

Top Cover (with bolts) — 10g
Computer Mount (Garmin base and bolts) — 15g
Light Holder (with bolts) — 4.3g

Total
29.3g

**Manufacturer reference weights. Actual weights may vary due to manufacturing tolerances and individual configurations.**

TECHNICAL SPECS

Every aspect of the EVOLVE CIMA has been engineered for lightweight performance, aerodynamic efficiency and long-term reliability.

Explore the complete frameset specifications below, including carbon construction, component compatibility, tyre clearance and included equipment.

EVOLVE CIMA Specifications

Frame & construction

Frame material
Toray T1100, T800 and M40 carbon fibre
Frame sizes
XS, S, M, ML, L, XL
Frame weight
650g (size M, unpainted)
Fork weight
355g (unpainted)
Fork offset
44mm (XS, S, M); 40.2mm (ML, L, XL)
Cable routing
Fully internal

Headset & seatpost

Headset
CeramicSpeed SLT bearings, included as standard
Headset bearing dimensions
40.5mm ID × 49.5mm OD × 6.5mm
Head tube diameter
49.5mm
Seatpost
EVOLVE aerodynamic carbon seatpost
Seatpost offsets
-5mm, +10mm, +25mm
Seatpost lengths
310mm and 380mm
Saddle rail compatibility
7×7mm, 7×9mm and 7×10mm

Drivetrain & braking

Bottom bracket
BSA threaded, 68mm
Rear derailleur hanger
SRAM UDH, M12×1mm
Groupsets
Shimano and SRAM electronic shifting; Campagnolo WRL electronic shifting
Campagnolo EPS
Not compatible
Brake type
Flat-mount disc only
Maximum rotor size
160mm front and rear
Maximum chainring
58T

Wheels & compatibility

Wheel size
700C
Tyre clearance
24–32mm
Front axle
12×100mm
Rear axle
12×142mm

Certification & warranty

Maximum rider weight
109kg
Certification
UCI approved and CE certified
Manufacturer warranty
Limited lifetime warranty
